SIES-8M-NO-24V-K-0,3-M8D proximity sensor 551402

Description

proximity sensor SIES-8M 551402, SIES-8M-NO-24V-K-0,3-M8D inductive, cable with plug, can be flush-mounted, N/C function Design=for T-slot, Conforms to standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us – Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Materials note=(* Free of copper and PTFE, * Conforms to RoHS)

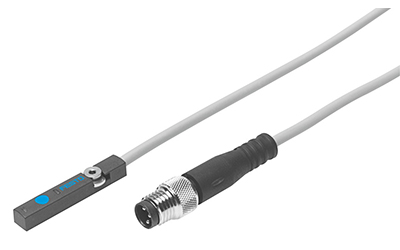

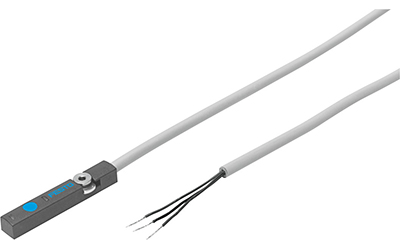

Proximity switch SIES-8M
The inductive proximity sensor SIES-8M for electric drives is ideal for signalling intermediate and end positions. The only inductive sensor for 8 mm slots, it features a patented status indication using two LEDs. Its clamping technology means it is quick to position and easy to secure.
Ideally suited for position sensing for electric axes and grippers with T-slot
Flush mounting
Switching status indication with 2 LEDs for better visibility regardless of the direction from which it is approached
Single inductive sensor for 8 slot with patented LED status indicator

Advantages of inductive sensors
Thanks to their contactless operating mode, inductive sensors have numerous advantages:

Long service life thanks to hardly any mechanical wear
No downtime caused by dirty or damaged contacts
No contact bounce and thus no switching errors
High switching frequency
Vibration resistance
High degree of protection thanks to a fully encapsulated housing
Any mounting position possible
