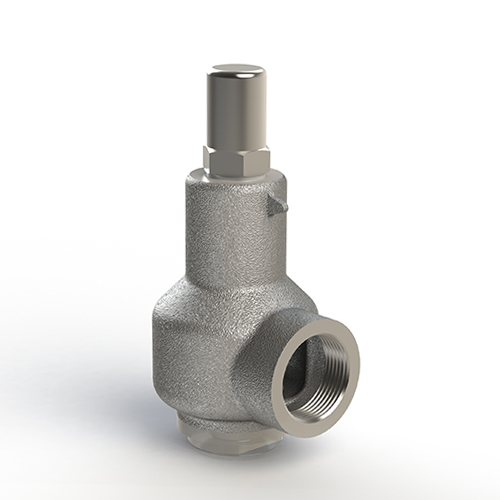

Gresswell S2000SSDT Stainless Steel 316 Full Lift Safety Relief Valve
Lead time: 2–4 Days
Bronze Full Lift Safety Relief valve – side outlet discharge with test lever.
These valves are used to prevent excess pressure build up in systems providing maximum flow rates. Suitable for use on steam, liquids and gases.
Sizes:
1/2″ (15), 3/4″ (20), 1″ (25)Part numbers:
S2000SSDT-M-15-[A-H*], 21215-0-004-[1-8], S2000SSDT-V-15-[A-H*], 21215-3-004-[1-8], S2000SSDT-M-20-[A-H*], 21220-0-004-[1-8], S2000SSDT-V-20-[A-H*], 21220-3-004-[1-8], S2000SSDT-M-25-[A-H*], 21225-0-004-[1-8], S2000SSDT-V-25-[A-H*], 21225-3-004-[1-8]
1/2″ (15), 3/4″ (20), 1″ (25)Part numbers:
S2000SSDT-M-15-[A-H*], 21215-0-004-[1-8], S2000SSDT-V-15-[A-H*], 21215-3-004-[1-8], S2000SSDT-M-20-[A-H*], 21220-0-004-[1-8], S2000SSDT-V-20-[A-H*], 21220-3-004-[1-8], S2000SSDT-M-25-[A-H*], 21225-0-004-[1-8], S2000SSDT-V-25-[A-H*], 21225-3-004-[1-8]
In Stock
Description
Specification
| Size Range | DN15–DN25 (½” – 1”) |
| Pressure Range | 0.3 Bar.g (4 PSI) to 12.4 Bar.g (180 PSI) |
| Body Material | Stainless Steel 316 |
| Pipe Connections | Female Inlet x Female Outlet |
| Threads | Standard valves threaded ‘Rp’ Parallel to BS 21:1985 |
| Flow Substance | Liquid, Steam, Gas |
Flanged connections also available – most flange standards can be accommodated.
Features & Benefits
- Full lift valve – flow rates are very high in comparison to traditional safety valves
- 316 stainless steel body for corrosive and process applications
- Quality assurance approved to BS EN ISO 9001:2015 and manufactured in accordance with BS EN ISO 4126-1 & BS 6759
- Full Cat IV PED approval
- Clear operating and maintenance instructions supplied with each despatch
Applications
- Vented and unvented systems
- Liquid pump relief, pipeline and vessel protection
- Steam boiler, pipeline and vessel protection
- Compressor, pipeline and receiver protection
