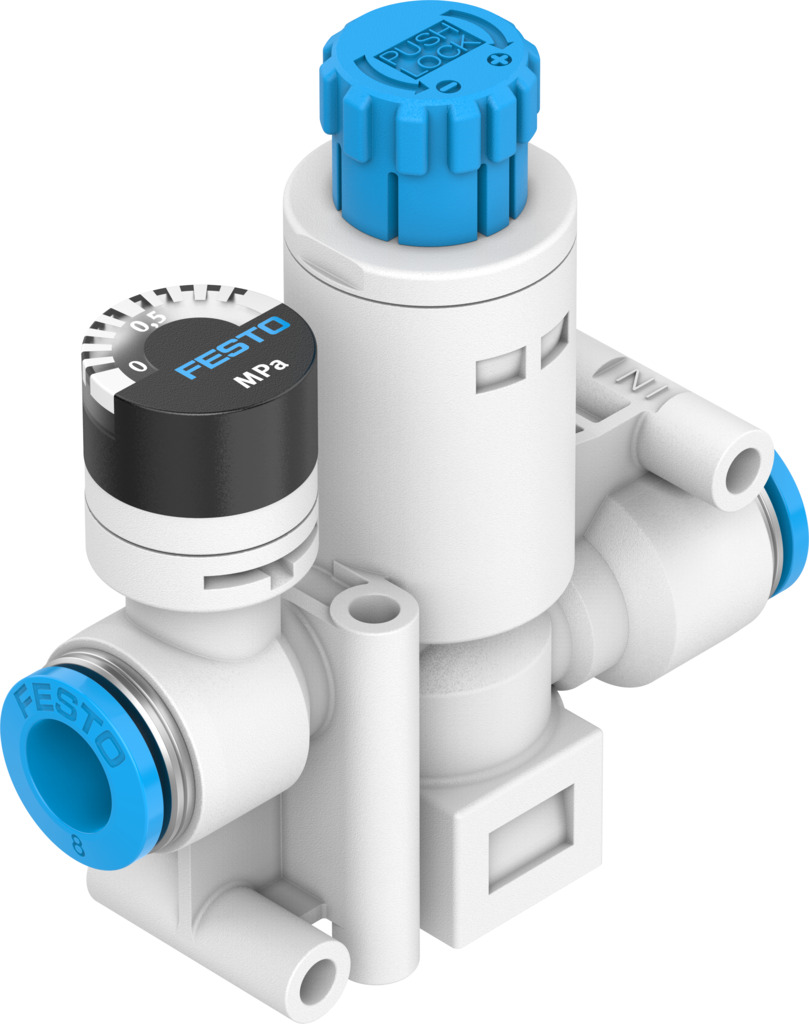

Pressure regulator VRPA-CM-Q8-E 8086005

Description

Pressure regulator VRPA-CM-Q8-E. Regulates the operating pressure independently of the fluctuating input pressure. With secondary exhaust and with return flow function. Piston regulator with through pressure supply. Increased energy efficiency thanks to motion-specific pressure adjustment. Directly actuated. With or without pressure gauge. Connections: push-in connector at both ends, thread/push-in connector

Pressure regulator, metric VRPA
Attractive, compact, strong: our classic in a new design! With VRPA you can quite simply reduce the pressure. The VRPA can be installed directly between 2 hoses, inline, or also directly on the valve terminal. e.g. to save energy when the full network power is not required.
Regulates the operating pressure independently of the fluctuating inlet pressure
With secondary exhaust and with return flow function
Piston regulator with through pressure supply
Greater energy efficiency thanks to movement-specific pressure adjustment
Directly actuated
Available with pressure gauge
Connections: push-in connector at both ends, thread/push-in connector
Sustainable operation thanks to reduced pressure level

Operating medium, Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium, Lubricated operation possible (in which case lubricated operation will always be required)
Ambient temperature 0 … 60°C
Materials
Material housing PBT
Material screwed plug Nickel-plated brass
Material thread seal PTFE
Material static seals NBR

Note on materials RoHS-compliant
LABS (PWIS) conformity VDMA24364-B2-L
Cleanroom class Class 4 according to ISO 14644-1
