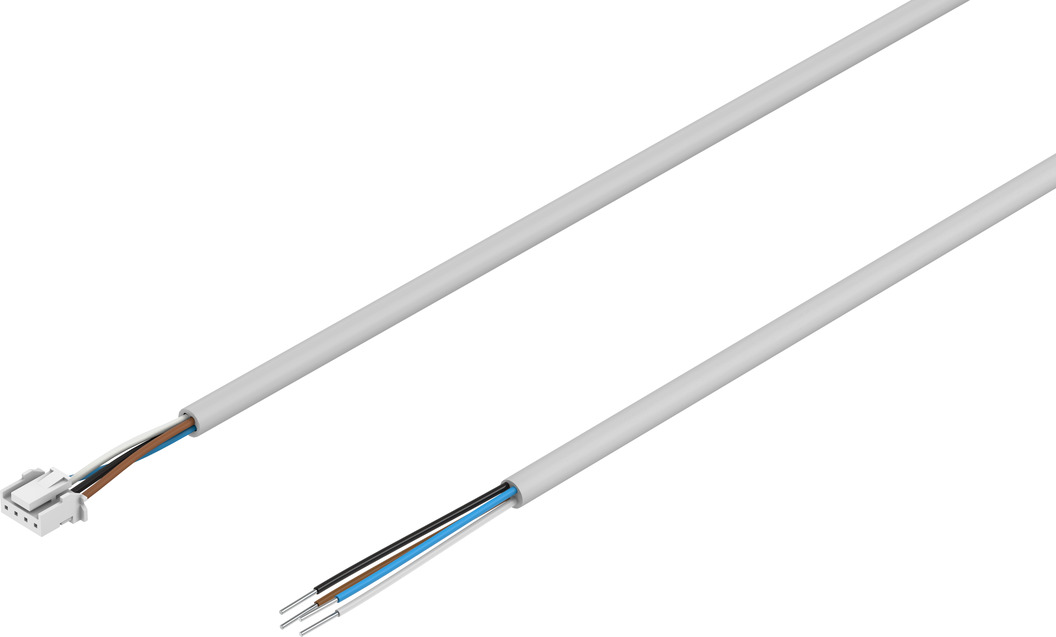

NEBS-L1G4-K-5-LE4 connecting cable 572577

Description

Festo connecting cable 572577 NEBS-L1G4-K-5-LE4 Electrical connection 1=Socket, rectangular design L1, 4-pin, Electrical connection 2=Open end, 4-wire, Operating voltage range DC=0 – 30 V, Acceptable current load at 40°C=1 A, Surge strength=0,8 kV

For connection with rectangular design L1, grid dimension 5.8 mm
For thread M12x1 A-coded according to EN 61076-2-101
For thread M16x0.75
Connecting cable for pressure sensor SPAN
Degree of protection IP40, IP65, IP67, IP69K, when mounted
Cable length 0.5 … 10 m
With PVC or PUR cable
Ambient temperature -40 … +70 °C

Electrical connection technology
Festo offers a wide range of connecting cables for electrical connection technology. Our universal cables offer unlimited combinations of plug sockets, cable lengths and qualities as well as plugs, specifically suited to, for example, proximity switches or pressure switches. We also have a large range of connecting cables for controllers, camera systems or I/O interfaces as well as connecting cables for motor controllers and motors, for valves and valve terminals and for sensors. In addition, we offer suitable plugs as well as a wide range of accessories such as inscription label holders, cable connectors, cover caps, illuminating seals, display and plug adapters.
