Festo MSB6-1/2:C3J2F3-WP service unit combination 542276

Description

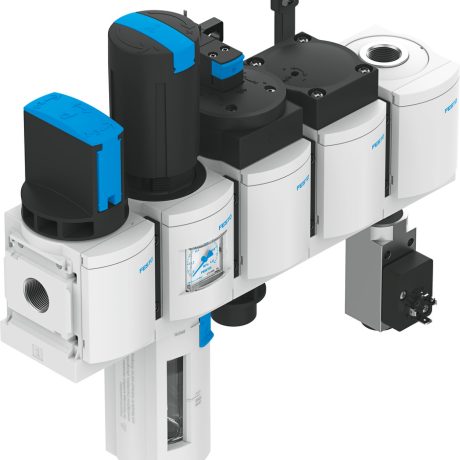

Festo service unit combination MSB6-1/2:C3J2F3-WP Comprising manual on-off valve, filter regulator, branching module with pressure switch without display, wall mounting plate Maximum output pressure 12 bar, 40 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly position=Vertical +/- 5°, Grade of filtration=40 µm

With the pre-configured MS series, Festo offers a holistic concept for your compressed air preparation. For simple standard applications as well as for application-specific solutions with the highest quality requirements.
Grid dimension 62 mm
Predefined or freely configurable combinations of service unit components
Depending on the application, combination of filter regulator, filter, lubricator, on/off valve, soft-start valve, branching module

MS series
Depending on the application, service units typically consist of a wide range of functional modules, such as a manual pressurisation and exhaust valve, a filter regulator and a branching module. At Festo, the most common combinations in the MS series are available from stock pre-assembled. In addition, with the configurator MSB of the MS series, complex service units can also be individually configured step by step, which is ideal for any application. These units are delivered fully assembled, pressure tested and therefore ready to install. As part of the Festo Core Range, these individual configurations can also be processed worldwide and are therefore quickly available. They are available in the three sizes MS4, MS6 and MS9 for a wide range of flow rates. Depending on the configuration, they are suitable for use in potentially explosive areas of zones 1, 2, 21 and 22 as well as with UL approval.
