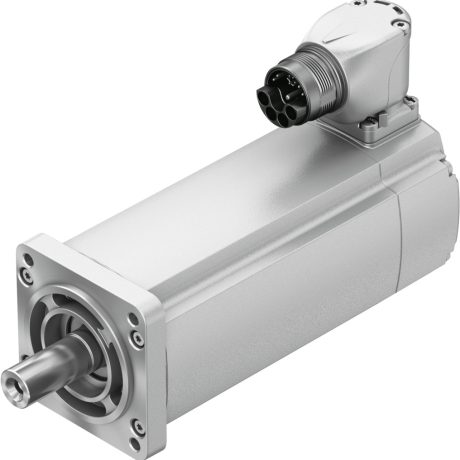

EMMT-AS-100-L-HS-RM Servo motor 5255535

Description

Servo motor EMMT-AS-100-L-HS-RM. Ambient temperature -15 °C … 40 °C Note on ambient temperature Up to 80°C with derating of -1.75% per degree Celsius Max. installation height 4000 m Note on max. installation height As of 1,000 m: only with derating of -1.0% per 100 m

The servo motor EMMT-AS for demanding and dynamic applications is characterised by very good controllability and path accuracy for positioning tasks, while the space-saving, single-cable solution significantly reduces installation effort.

• Technology series for demanding positioning tasks
• A selection of 5 motor sizes in up to 4 lengths
• Brushless, permanently magnetized synchronous servo motor
• Digital absolute displacement encoder, single turn or multi-turn
• Reliable, highly dynamic, extremely precise
• Extremely low cogging torque – supports high synchronisation even at low rotational speeds
• One motor connection (OCP: one cable plug) – one connecting cable for supply and encoder, with rotatable plug
• Degree of protection IP67 (for motor housing and connection technology) and up to IP65 (on the motor shaft with shaft seal)
• Optionally with holding brake

Servo motor EMMT-AS: maximum cost-effectiveness for maximum performance
The AC synchronous servo motor for demanding and dynamic applications is characterised by an extremely low cogging torque. This ensures good adjustability and tracking accuracy for positioning tasks. Quick and safe commissioning: the electronic rating plate contains all the important data for the motor. This can be read by the servo drive CMMT-AS and then used to automatically set the parameters for the servo motor.
