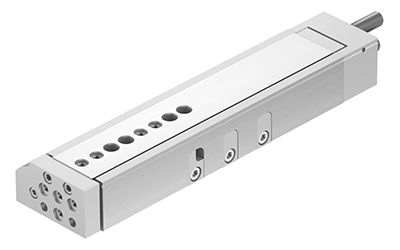

DGSL-8-40-Y3A mini slide 543939
DGSL-8-40-Y3A mini slide 543939 Slide drive with ball bearing guide and a wide range of adaptation options such as stroke reduction, end-position locking, and clamping unit. Slide drives achieve a repetition accuracy of 0.01 mm.
Not sure if this is the right product for you? Don't hesistate to contact us directly.
Description
mini slide DGSL-8-40-Y3A For position sensing, with highly accurate, durable ball-cage guide and very high repetition accuracy, hydraulic shock absorbers on both sides (Y3). Stroke=40 mm, Adjustable endposition range/front length=31 mm, Adjustable endposition range/rear length=14 mm, Piston diameter=10 mm, Operating mode of drive unit=Yoke
Festo pneumatic slides are pneumatic guided cylinders with a particularly compact design. To guarantee optimal cycle times and minimise the vibrations transferred to the machine, we offer pneumatic slides in a number of sizes with a wide range of mounting and cushioning options. Festo mini slides achieve a repetition accuracy of 0.01 mm.
Mini slide, metric DGSL
Slide drive with ball bearing guide and a wide range of adaptation options such as stroke reduction, end-position locking, and clamping unit.
High load capacity and positioning accuracy
Maximum movement precision thanks to ground-in ball bearing cage guide
Maximum flexibility thanks to 8 sizes and a large selection of cushioning variants
Variants with clamping unit or end-position locking for fixing the guide slide
Wide variety of mounting and attachment options
Compact design
Additional information
| Weight | 0.386 kg |
|---|---|
| Festo Series | DGSL |
